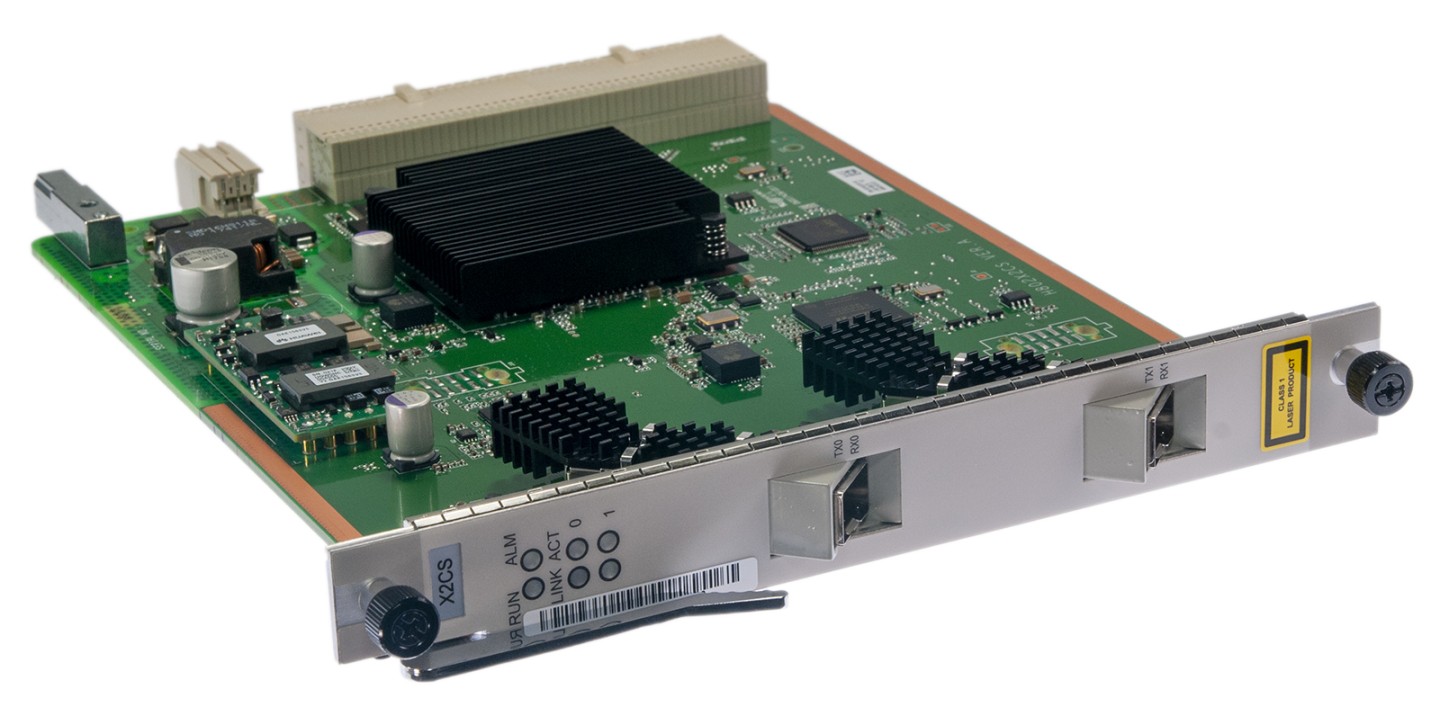

Huawei • H802X2CS+M • Uplink karta 2x 10G SFP+ s moduly

Huawei H802X2CS je uplink karta pro OLT jednotky MA5683T a MA5680T vybavená 2x SFP + slots (10 Gb / s) s osazenými moduly.

Uveřejněná cena je orientační koncová cena.
Aktuální VO cenu vám na vyžádání rádi obratem sdělíme.

Technické specifikace:

Interfaces :
2 sloty SFP+
Compatibility with SFP

Maximum capacity:
10 Gb/s symetric

Frame size:
2052 B
jumbo frame: 9216 B

Power consumption:
average: 7 W
maximum: 10 W

Additional functions:
Cascading
Intra-board aggregation
Inter-board aggregation

LED indicators:

RUN (information about the operation of the board):

green LED flashes 1s: the board is working properly
green LED blinks 0.25s: the board has started and is loading soft
green LED off: error
ALM (alarm information):

red light on: an error has occurred or the CPLD software is being updated
red LED off: the hob is working properly
LINK (connection information):

green LED is on: connection is working normally
green LED off: connection error
ACT (data flow information):

yellow LED flashes: data is being transferred
yellow LED not flashing: data not being transmitted
